Linsn X8212 Two-in-One Video Processor Rau Xim Xim Sab Hauv Tsev LED Module
Muaj nuj nqi thiab nta
- Integrated nrog xa daim npav thiab video processor;
- Nrog 12 qhov tso zis, txhawb nqa txog 7.8 lab pixels;
- Txhawb nqa mus txog 8192 pixels kab rov tav lossis mus txog 4000 vertically;
- Txhawb DP1.2 / HDMI2.0 4K @ 60Hz input;
- Txhawb hloov ntau txoj kev sib txuas;
- Txhawb EDID kev cai tswj;
- Txhawb nqa puv npo scaling thiab pixel-rau-pixel scaling;
- Txhawb 3-qhov rais layouts (qhov chaw sab laug, nruab nrab, sab xis) rau txhua qhov kev tawm tswv yim;
- Txhawb kev kho cov duab zoo;
- Txhawb PIP muaj nuj nqi rau txhua qhov kev tawm tswv yim;
- Txhawb 3D muaj nuj nqi.
Qhov tshwm sim

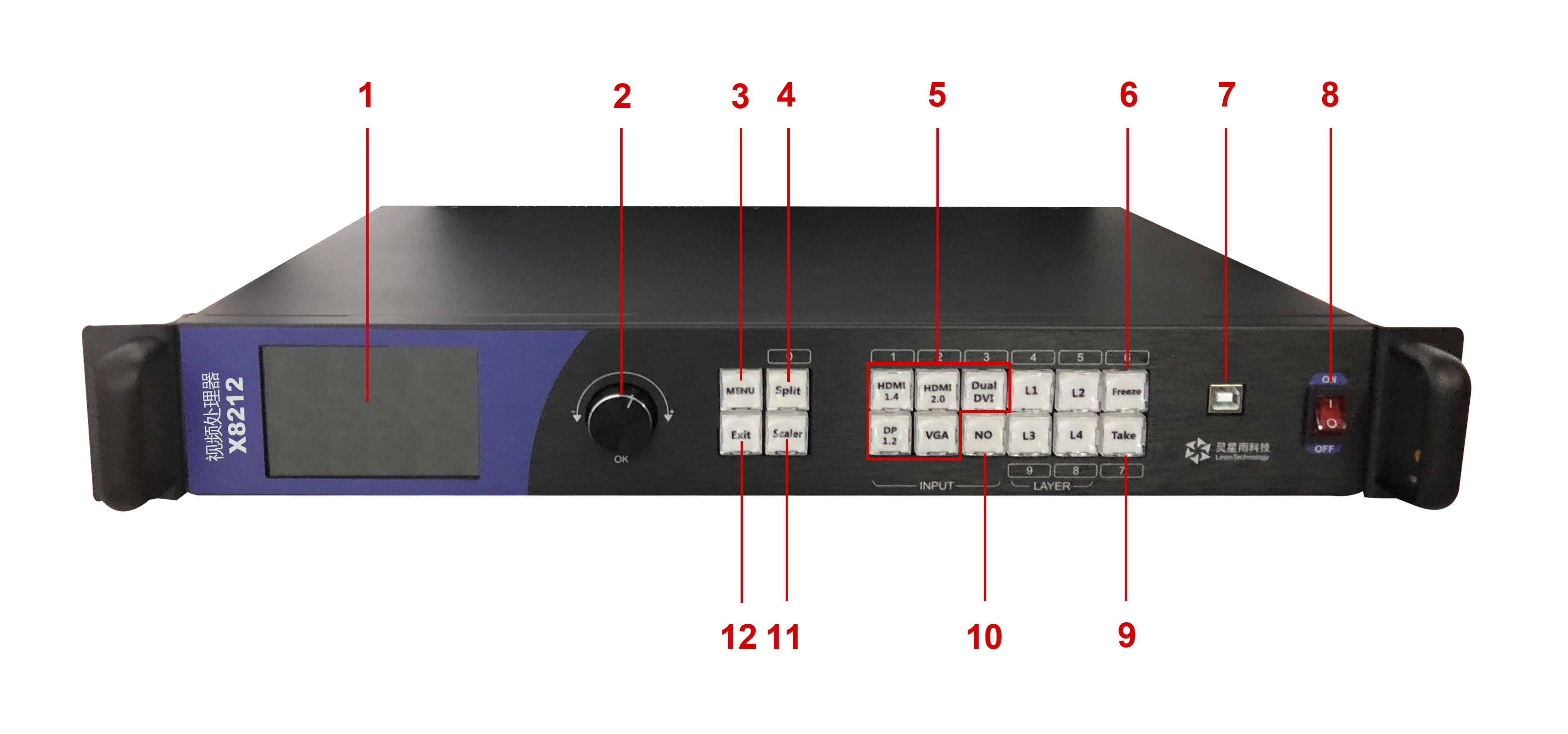

Pem hauv ntej vaj huam sib luag
| No | Interface | Kev piav qhia |
| 1 | LCD | Qhia zaub mov thiab cov xwm txheej tam sim no |
| 2 | Tswj pob qhov rooj | 1.Nias cia nkag mus rau hauv ntawv qhia zaub mov 2. Tig los xaiv lossis teeb tsa |
| 3 | MENU | Main zaub mov |
| 4 | Sib cais | Rau nkag mus rau layout zaub mov |
| 5 | Kev xaiv teeb liab | Rau kev xaiv qhov chaw nkag, thiab ib qho raug xaiv yuav teeb |
| 6 | Txias | Freezes duab |
| 7 | USB | Txhawm rau txuas PC sib txuas lus nrog LEDSET los ua qhov teeb tsa thiab txhim kho |
| 8 | Hloov fais fab | |
| 9 | Noj
| 1.2D / 3D hloov yuam sij 2.Rau xaiv qhov chaw tawm tswv yim thaum ob/peb qhov rais tso zis yog nyob rau hauv kev siv |
| 10 | NO | Khaws tseg |
| 11 | Scale | Shortcut rau zooming nyob rau hauv / tawm, thiab nws yog zoo nyob rau hauv plaub-network-chaw nres nkoj splicing thiab saib ua ntej hom |
| 12 | Tawm | Rov qab los yog tso tseg |
| Nco tseg: | Split, HDMI1.4, HDMI2.0, DVI, L1, L2, Khov, Coj, L4, L3 sawv cev rau 0-9 raws li tus lej hom qhib | |
| Inputspecifications | ||
| Chaw nres nkoj | QTY | Specifications |
| HDMI 1.4 | 1 | VESAstandard, max txhawb 3840 × 2160 @ 30Hz input |
| HDMI 2.0 | 1 | VESAstandard, max txhawb 3840 × 2160 @ 60Hz input |
| Dual DVI | 1 | VESAstandard, max txhawb 3840 × 2160 @ 30Hz input |
| DP | 1 | VESAstandard, max txhawb 3840 × 2160 @ 60Hz input |
| VGA | 1 | VESAstandard, max txhawb 1920 × 1200 @ 60Hz input |
Lub Vaj Huam Sib Luag
| Tawmtsospecifications | ||
| Qauv | Network Output QTY | Kev daws teeb meem |
| x821 2 | 12 | Txhawb txog li 7.8 lab pixelsIb qho chaw nres nkoj txhawb nqa txog 650 txhiab pixels, 256px yog qhov dav tsawg kawg nkaus thiab mus txog 2048px kab rov tav, cov txiaj ntsig no ntau yam ntawm 32 Txog 8192 pixels txhawb kab rov tav Los yog txog li 4000 pixels txhawb vertically Rau 3D nyhuv, nws yog ib nrab ntawm lub peev xwm |
Qhov ntev
Specifications
| Hwj chim | Ua haujlwm Voltage | AC 100-240V, 50/60Hz |
| Rated zog noj | 30 W | |
| Ua haujlwm ib puag ncig | Kub | -20 ℃ ~ 70 ℃ |
| Cov av noo | 0% RH ~ 95% RH | |
| Lub cev Dimensions | Qhov ntev | 482 * 330.5 * 66.4 hli |
| Qhov hnyav | 3 Kg | |
| Packing Dimensions | Ntim | PE tiv thaiv ua npuas ncauj thiab thawv |
| Carton Dimensions | 52.5 * 15.5 * 43.5 hli |
