Youyi YY-D-300-5 Hom I 5V 60A 100 ~ 240V LED Fais Fab

Youyi YY-D-300-5 Hom I 5V 60A 100 ~ 240V LED Fais Fab Khoom Siv Duab
  • Youyi YY-D-300-5 Hom I 5V 60A 100 ~ 240V LED Fais Fab
  • Youyi YY-D-300-5 Hom I 5V 60A 100 ~ 240V LED Fais Fab

Lus piav qhia luv luv:

Input voltage: 100V txog 240Vac
Kev tiv thaiv muaj nuj nqi: Short Circuit Protection, Over Load Protection
Ua haujlwm kub ntau: -10 ℃ to +70 ℃ (-30 ℃ tuaj yeem pib)
High Efficiency, lub neej ntev thiab kev ntseeg siab
PCB siv cov txheej txheem txheej txheem txheej txheem




  • Cov zis voltage: 5V
  • Output Rated Tam sim no:50A (100V txog 180Vac) 60A (180Vac txog 240Vac)
  • Ua haujlwm kub:-10 ℃ ~ 70 ℃
  • Txias hom:Ntuj cua txias
  • Qhov Loj:L220 x W48 x H 26
  • Qhov hnyav:350g ua
    • Whatsapp Email

    Product Detail

    Khoom cim npe

    Hluav taws xob Specification

    Input Hluav taws xob yam ntxwv

    Input Voltage Range

    		 90 VAC ~ 264VAC
    Rated Input Voltage
    		 100VAC ~ 240VAC

    Input Frequency Range

    		 47 HZ ~ 63HZ

    Rated Frequency Range

    		 50HZ ~ 60HZ

    Input Tam sim no
    Max.3.5A ntawm 100Vac input thiab puv load
    Max.2.5A ntawm 240Vac input thiab puv load

    Inrush tam sim no
    ≤80A ntawm 230Vac

    Hwj chim Factor
    ≥0.95 ntawm 230Vac (Load test)
    Kev ua tau zoo
    Kev ua haujlwm yuav tsum ntawm 100% load> 86.0% ntawm 100Vac
    Kev ua haujlwm yuav tsum ntawm 100% load> 89.0% ntawm 230Vac
    Output Hluav taws xob yam ntxwv

    Tso zis zog

    		  300 W
    Tso zis Channel  COV 2(+)(-)
     Rated Tso zis Voltage  + 5.0V Vdc
    Voltage raug 2%
    Rated Tam sim no 100V txog 180Vac / 50A

    180V txog 240Vac / 60A

    Lus Cim: Kev ntsuas hluav taws xob ntsuas hluav taws xob, yuav tsum ntsuas qhov hluav taws xob tso zis hluav taws xob.

    Output Ripple & Suab nrov

     Tso zis Channel  Rated Tso zis Voltage

    Output Ripple & Suab nrov
    100V txog 180Vac (50A)180V txog 240Vac (60A)
    COV 2(+)(-) + 5.0 Vdc

    ≤ 300mV

    Lus Cim: Ripple & Noise

    • Bandwidth ntawm oscilloscope yog teem rau 20MHz.
    • Ntawm qhov tso zis sab xauv 10 cm cable mus rau 0.1uF ceramic capacitors nyob rau hauv parallel thiab 10uF electrolytic capacitor los kuaj cov ripple thiab suab nrov.

    Qhib Lub Sijhawm Ncua Sijhawm



    Tso zis Channel



    Rated Tso zis Voltage

    Qhib Lub Sijhawm Ncua Sijhawm
    100V txog 180Vac (50A)

    180V txog 240Vac (60A)
    COV 1(+)(-)

    + 5.0 Vdc

    ≤ 3S

    Lus Cim: AC voltage rau qhov tso zis voltage ntawm 90% ntawm lub sijhawm.

    Tuav lub Sijhawm



    Tso zis Channel



    Rated Tso zis Voltage

    Tuav lub Sijhawm
    100V txog 180Vac (50A)

    180V txog 240Vac (60A)
    COV 1(+)(-)

    +5.0

    ≥5mS

    Lus Cim: Kaw lub AC input voltage rau qhov tso zis voltage ntawm 90% ntawm lub sijhawm.

    Output Voltage Rise Lub Sijhawm



    Tso zis Channel





    Rated Tso zis Voltage



    Output Voltage Rise Lub Sijhawm
    100V txog 180Vac (50A)

    180V txog 240Vac (60A)
    COV 2(+)(-)

    +5.0

    ≦100mS

    Lus Cim: Cov zis hluav taws xob tau nce ntawm 10% mus rau 90% ntawm lub sijhawm.



    Tso zis Overshoot



    Tso zis Channel



    Rated Tso zis Voltage

    Tso zis Overshoot
    100V txog 180Vac (50A)

    180V txog 240Vac (60A)
    COV 2(+)(-) + 5.0 Vdc

    ≦ 10%



    Transient teb



    Tso zis Channel



    Rated Tso zis Voltage

    		 Transient teb
    100V txog 180Vac (50A)

    180V txog 240Vac (60A)




     COV 2(+)(-)





     + 5.0 Vdc

    		 Cov zis: 0-50%, 50% ~ 100% Slew Rate: 1A / uS,

    Cov zis overshoot thiab

    undershoot yuav tsum yog ≤ ± 10% ntawm Transient Response Recovery Time: 200us



    Capacitive Load

    Cov khoom siv hluav taws xob muaj zog thiab ua haujlwm nrog 8000uF capacitive loads.

    Kev tiv thaiv muaj nuj nqi

    Kev tiv thaiv luv luv

    Yam khoom

    Lus ceeb toom

    Kev tiv thaiv luv luv

    		 Hiccup, kev daws teeb meem, cov zis hluav taws xob rov qab los.



    Kev tiv thaiv tam sim no

    Yam khoom

    		 Tshaj tam sim no

    Lus ceeb toom


    Kev tiv thaiv tam sim no



    120% ~ 160%

    		 OCP txhais taw tes yuav tsum nyob nruab nrab ntawm 120% thiab 160%

    ntawm rated load tam sim no.Fais fab mov tso zis yuav tsum

    rov zoo tuaj nrog lub cev load thaum

    qhov kev txhaum raug tshem tawm.



    Input Nyob rau hauv Voltage Protection

    Yam khoom

    		 Hauv qab Voltage

    Lus ceeb toom
    Input Nyob rau hauv Voltage Protection 70V rau 89Vac Tsis muaj hluav taws xob tiv thaiv (0% -100% LOAD).



    Input Hauv Voltage Recovery

    Yam khoom

    		 Rov qab

    Lus ceeb toom
    Input Hauv Voltage Recovery 88V rau 90Vac Tso zis rov qab.(0% - 100% LOAD).

    Environmental condition

    Ambient Kub

    Kev ua haujlwm kub -10 ℃ to +70 ℃ (-30 ℃ tuaj yeem pib)
    Cia Kub  -40 ℃ to +85 ℃



    txheeb ze humidity

    Ua haujlwm txheeb ze humidity 5% RH txog 90% RH
    Cia txheeb ze humidity  5% RH txog 95% RH



    Qhov siab

    Ua haujlwm Altitude ≦2000m
    Cia Qhov Siab ≦2000m



    Huab cua

    Huab cua Siv rau kev nyab xeeb tropical



    Txoj kev txias

    Txoj kev txias

    Ntuj cua txias



    Fais fab tuag

    Qhov siab tshaj plaws ntawm cov zis load derating los ntawm 40 ° C mus rau 50 ° C yog 1.0% / ° C uas yog 274W ntawm 50 ° C.

    Qhov siab tshaj plaws feem pua ​​​​ntawm cov zis load derating los ntawm 50 ° C mus rau 70 ° C yog 1.67% / ° C uas yog 204W ntawm 70 ° C.

    Kev ntseeg tau

    TSIS MUAJ.

    Yam khoom

    Lus ceeb toom
     5.1   Fais fab on/off Cycle Cov khoom ntawm chav tsev kub ib puag ncig, Rated input thiab

    tso zis, hloov lub 3 s 1000 zaus ntawm lub voj voog.
     5.2  Hlawv-hauv Test Cov khoom nyob rau hauv 40 ℃ ib puag ncig, input 220Vac, tso zis rated load

    ua haujlwm 72 teev tsis tu ncua.


     5.3



    Kev vibration

    IEC60068-2-6, Sine yoj zoo siab, acceleration 10Hz ~ 150Hz ntawm 25M / S22.5 g yog ';90min ib axis rau tag nrho X, Y, Z kev taw qhia.IEC60068-2-6, Random: 5Hz-500Hz ntawm 2.09G RMS ncov.20 min ib

    axis rau tag nrho cov kev taw qhia X, Y, Z

    5.4

    		 poob siab 49m/s² (5G), 11ms, ib zaug X, Y thiab Z axis
     5.5 MTBF Lub laij lej MTBF yuav tsum muaj ntau tshaj 20,000 teev raws li Telcordia SR-332 thaum AC 220V / 50Hz thiab tag nrho cov khoom tso tawm ntawm
     5.6 Hluav taws xob

    Lub neej Capacitor

    		 Lub neej ntawm lub tshuab xam zauv yuav tsum muaj ntau tshaj 10 xyoo thaum AC 220V / 50Hz input, 50% load ntawm 35 ° C ambient.

    Kev nyab xeeb

    TSIS MUAJ.

    Yam khoom

    		 Qhov xwm txheej

    Lus ceeb toom


     6.1



     Dielectric zog

    		 Primary mus rau Secondary  3000VAC, 5mA, 60S

     Tsis ya arc thiab tsis tawg
    Thawj zaug rau hauv av  1500VAC, 5mA, 60S
    Secondary rau hauv av  500VAC, 5mA, 60S
      6.2  Rwb thaiv tsev Resistance Primary mus rau Secondary  500Vdc, ≥10MΩ  Nyob rau hauv ib txwm atmospheric siab, txheeb ze av ntawm 90%, sim DC voltage 500V
    Thawj zaug rau hauv av
    Secondary rau hauv av
     6.3 Leakage Tam sim no Primary mus rau Secondary  ≤ 5.0mA  Chav kawm I
     6.4 Hauv av impedance  0.1 ohms. 32A / 2 feeb (UL Certified qauv: 40A / 2 feeb)
     6.5 Daim ntawv pov thawj kev nyab xeeb

    /



    EMI

    Cov khoom siv hluav taws xob ua tau raws li EN 55022 CISPR 22 Chav Kawm.

    EMC

    Cov khoom siv hluav taws xob ua tau raws li cov qauv hauv qab no: EN61000-3-2: Harmonic Current Emission Class.TS EN 61000-3-3 Voltage fluctuations thiab Flicker

    IEC 61000-4-2: Electrostatic Discharge, Theem 4: ≥ 8KV tiv tauj, ≥ 15KV huab cua tawm, Cov Cai A.

    IEC 61000-4-3: Radiated Electromagnetic teb, Theem 3. Kev Cai A IEC 61000-4-4: Hluav taws xob ceev ceev, Theem 3. Kev Ntsuas A IEC 61000-4-5: Surge;Qib 3, Kev Cai A.

    IEC 61000-4-6: Ua Kev Tiv Thaiv Kev Tiv Thaiv, Qib 3 Kev Cai A. IEC 61000-4-8: 10A / Meter, Cov Cai.

    IEC 61000-4-11: Voltage dips thiab cuam tshuam.100% dip, 1 lub voj voog (20ms), tus kheej rov qab tau IEC 61000-4-12: Theem 3, Qauv A

    Derating Curve

    Ambient Kub thiab tso zis tam sim no

    1

    Input voltage thiab Output Current

    2

    Lus Cim:

    • Pom zoo tias Cov Khoom Siv Hluav Taws Xob yuav tsum tau muab nruj nreem nrog lub dab dej kub tau piav qhia.Qhov loj me: 250 * 250 * 3mm
    • Cov khoom siv hluav taws xob tsis tuaj yeem siv nyob rau hauv ib puag ncig ntawm ntau dua 264Vac.

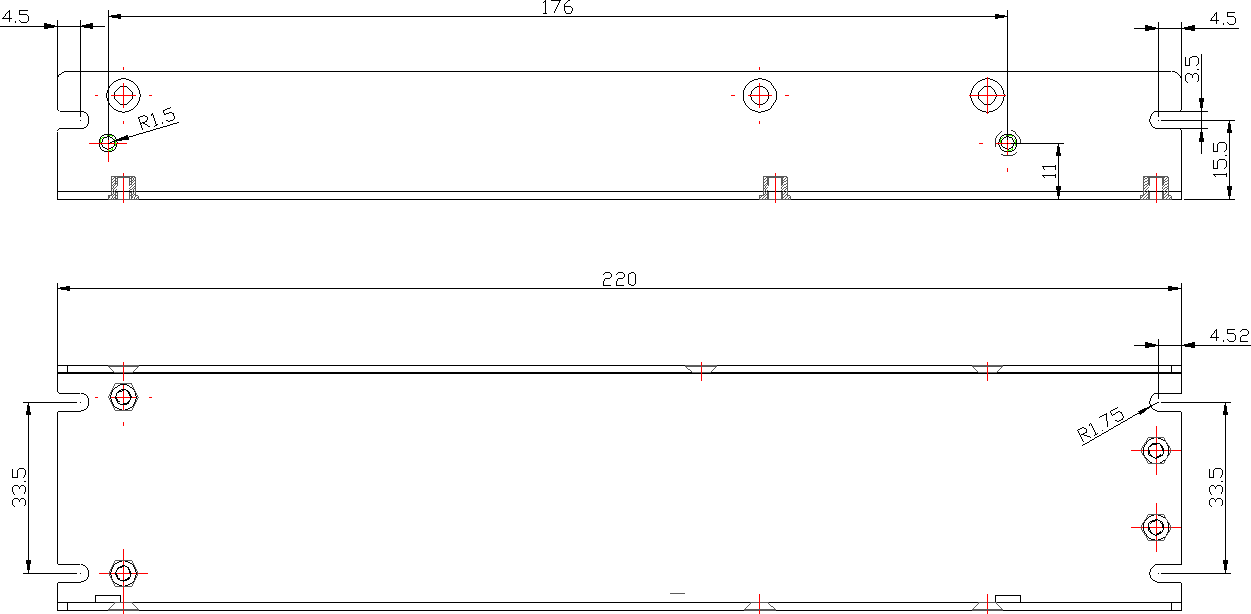

    Dimensions thiab Structure



    Qhov ntev Qhov Loj: 220mmx48mmx26mm ± 0.5mm

     3

    Kev kos duab

    Ntxiv aluminium phaj kev ua haujlwm

    Txhawm rau ua raws li qhov ntsuas kub thiab qhov tso tawm tam sim no poob nkhaus thiab qhov hluav taws xob input thiab tso tawm tam sim no poob nkhaus fais fab mov yuav tsum tau muab ntsia rau ntawm lub phaj txhuas, nws tau pom tias qhov loj ntawm txhuas phaj yog qhia hauv daim duab hauv qab no.Txhawm rau txhim kho cov cua sov kom zoo, aluminium nto yuav tsum du.

    4

    Txhawm rau kom muaj cua sov zoo, tsawg kawg 5cm ntawm qhov chaw nyob ib puag ncig lub zog yuav tsum tau tshwj tseg thaum lub sijhawm teeb tsa, raws li qhia hauv daim duab hauv qab no

    5

    Pin kev sib txuas

    CN01 (Hom: 8.25mm, 3Pin)

    Pin naj npawb

    Cim

    Muaj nuj nqi

    1

    L

    AC input L

    2

    N

    AC Input N

    3

    G

    Hauv av



    CN02 (Hom: 6 * 8mm, 4Pin)

    Pin naj npawb

    Cim

    Muaj nuj nqi

    4

    V-

    DC tso zis -

    5

    V-

    DC tso zis -

    6

    V+

    DC tso zis +

    7

    V+

    DC tso zis +
